Products
>
Horizontal Centrifugal Pump
> CNP Chemical Pump
|
PVDF Chemical Pump
 |

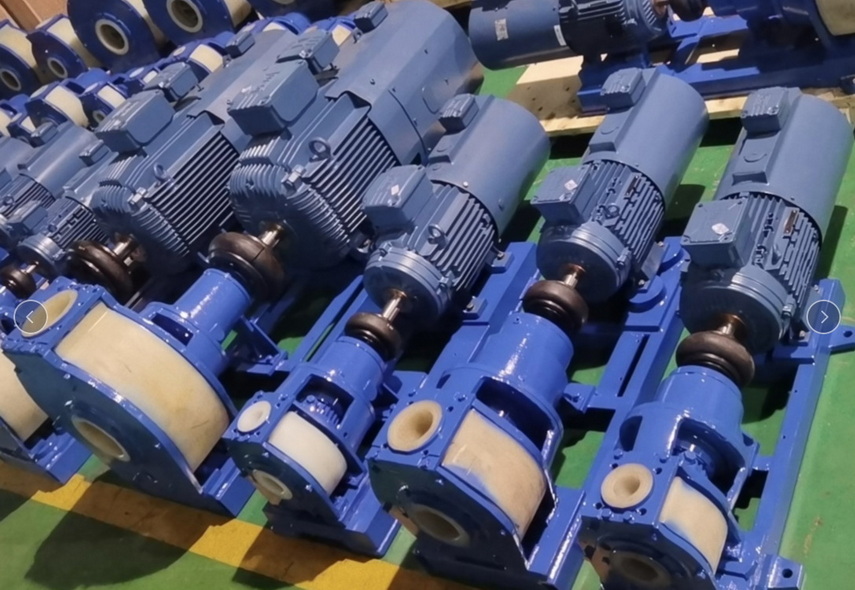

CNP type PVDF Chemical Pump
Application:
Chemically aggressive, even contaminated, media throughout the whole range of chemical processing technology, surface coating technology, environ-mental engineering and other areas of industry.
1.Chlor-Alkali Electrolysis
2.Sulphuric acid
3.Steel and Stainless steel pickles
4.Titanium dioxide
5.Phosphoric acid
6.Sea water
7.Waste incineration (flue gas cleaning)
8.Scrubber
9.Waste water
10.Hydrochlorid acid
Standard Executed:
ISO 5199, ISO 2858, EN 22858
Type:
Horizontal, single-stage
Construction:
Back-pull-out design according to ISO 2858
Impeller:
Closed or semi-open
Sealings:
Single type or double type
Bearing lubrication:
Grease
Installation versions:
Base frame welded or cast iron base plate
Ambient temperature:
-20deg.c to 60deg.c
Solid content limit value:
approx. 5 %
Materials:
PP,UHMW-PE,PVDF,FEP,PFA
Operation temp:
Up to 110 deg.c
|
|
