SLZAO type API Chemical Pump
 |

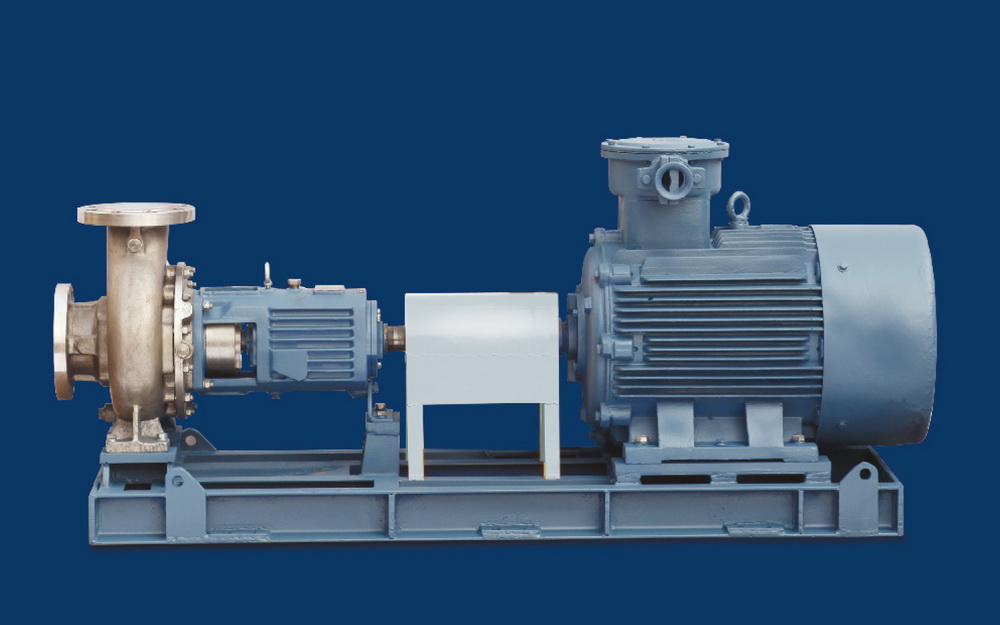

SLZAO Type API 610 Chemical Pump
The API 610 SLZAO Chemical pump (semi-open design impeller) is a horizontal, end suction, single stage radially split, for pumping clean or slightly polluted, cold or hot, chemically neutral or corrosive liquids.
Application
• Refineries, petrochemical industry, coal processing and low temperature engineering
• Chemical industry, fiber and general processing industries, particularly in paper and pulp industries, sugar industry and
clean water applications, particularly seawater desalination plants
• Heating and air-conditioning
• Fossil power stations
• Environmental protection
• Engineering and in automotive industries
• Marine and offshore applications
Performance Range
Sizes DN: 32-300 mm
Capacity Q: up to 2000 m3/h
Head H: up to 245 m
PressureP: up to 2.5 MPa
Temperature T: -30 - +450oC
|
