ANSI chemical pump, CN type, is 100% the same as GOULDS 3196 type ANSI CHEMICAL PROCESS PUMPS in all respects. The CN type ANSI chemical process pumps comply with ASME B 73.1 standard also. Hence all the components are the same as european ANSI process pump parts, such as Goulds 3196,Durco Mark 3, Peerless 8196, Summit 2196, Griswold 811, Aurora 3500.ANSI chemical process pumps are designed to handle corrosive fluids,chemicals and so on. These process pumps are supplied with open impeller and used for heavy duty applications as per industry standard ANSI B73.1. ANSI chemical pump series has a wide range of sizes.

Because ANSI Chemical Pump adopts the full open impeller, so this chemical pump can be used for all chemicals and industrial water with solids and suspensions.

ANSI Chemical Pump has become the standard for applications requiring corrosion resistant pumps. Our ansi process pump designs offer a wide range of capabilities. Ranges are from compact size configurations to our large size chemical process pump series. Therefore, this broad range of ansi chemical pump capabilities is unmatched in the industry making us the leader in ansi process pump technology home and abroad.

Parameters:

Size: 1″-10″
Q: max 1400 m3/h
H: max. 142 m
Media temp: -25°C~+200°C
System pressure: 25 bars

Material Available:

Cast Iron
Ductile Cast Iron
Carbon Steel
SS304 (L)
SS316 (L)
Alloy 20
Titanium (TA2)
CD4MCu
Nickel 201 or 200
Hastelloy B&C and so on

Mechanical Seal Type:

Single Mechanical Seal
Double Mechanical Seal and so on

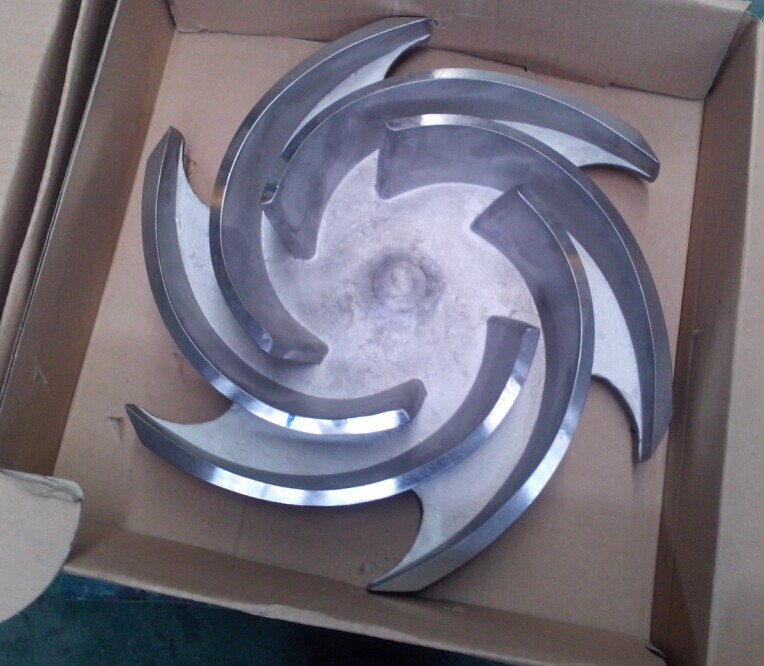

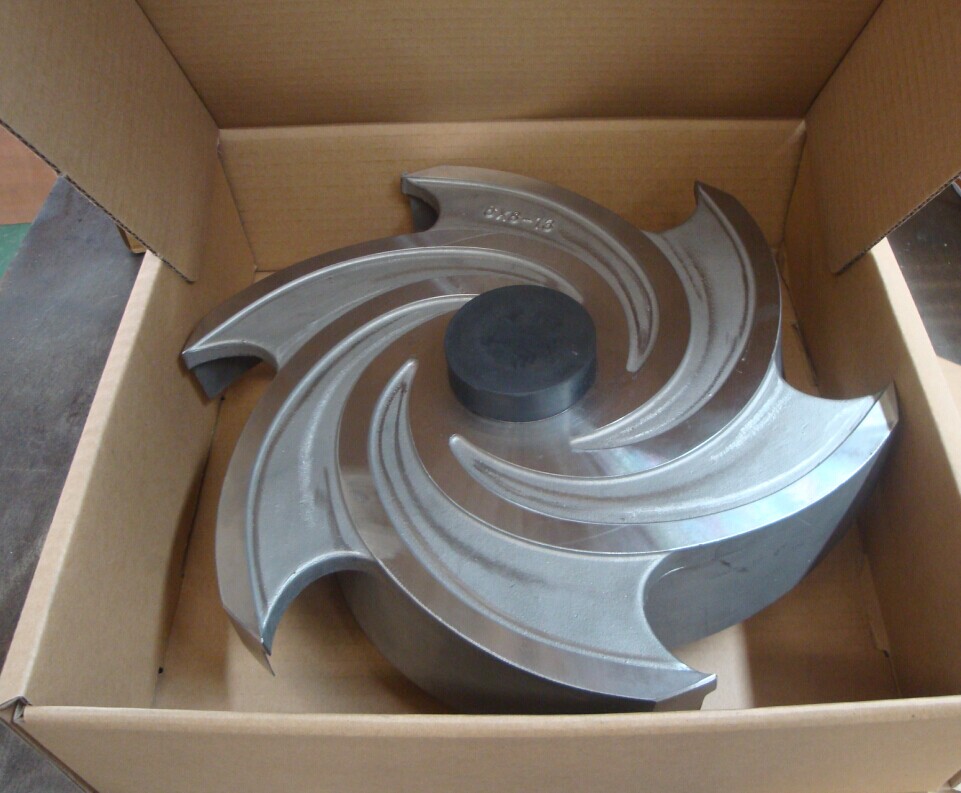

Impeller Type:

Full Open type

Bearing Type:

NSK,SKF and so on

Frame type:

STX,MTX,LTX

Designed and Manufactured Standard:

ANSI/ASME B73.1

Flanges Standard:

ANSI B16.5 150LB FF RF
ANSI B16.5 300LB FF RF and so on

Application:

Surface treatment
Water treatment
Chemical processing
Food processing
Fluid handling needs and so on

Motors for Pump:

Siemens China, Wannan, ABB China ( Furthermore, we can supply the motor brand as per customer request )
